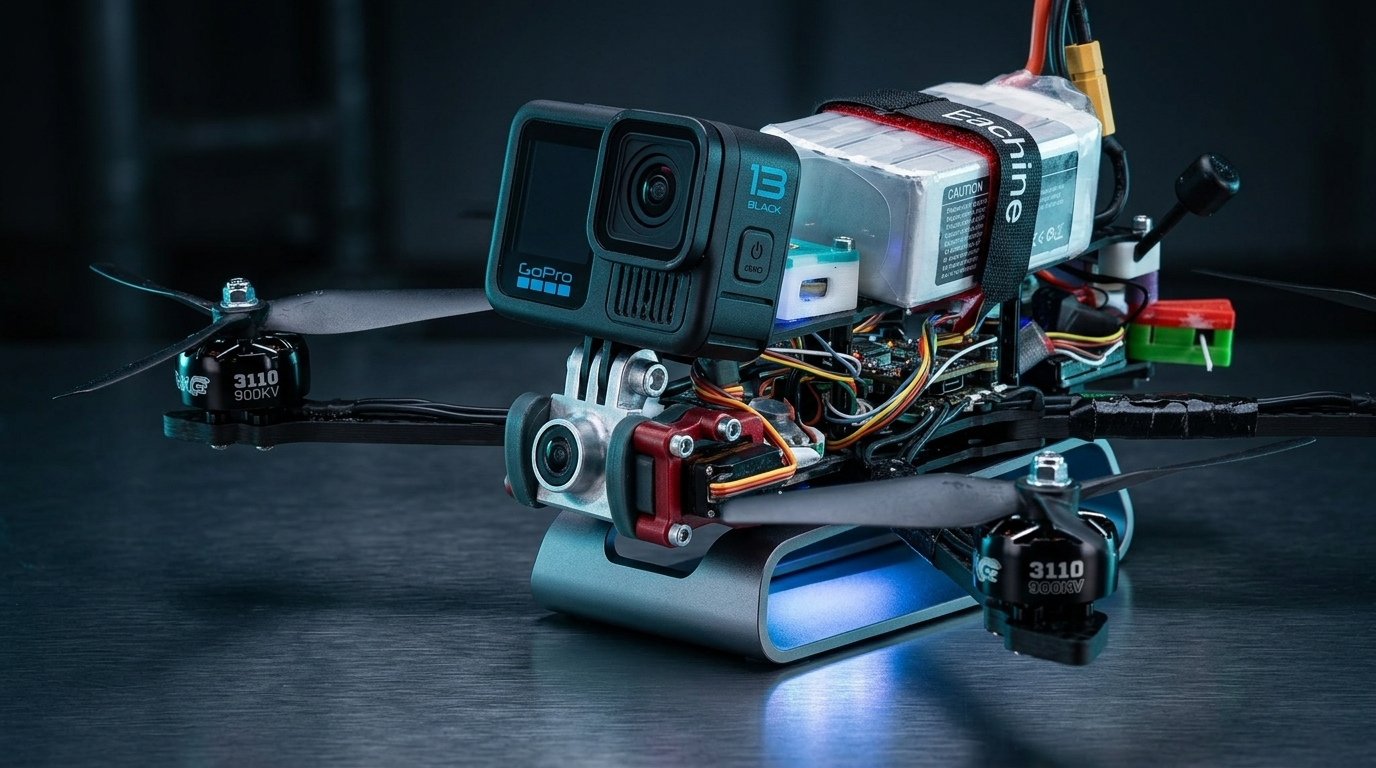

Tilt Your FPV Camera.
Mount Your Action Cam.
Scroll to explore
How it works
One dial, one servo — both cameras tilt together. See it in action below. Scroll to tilt the camera.
What is ServoTilt?

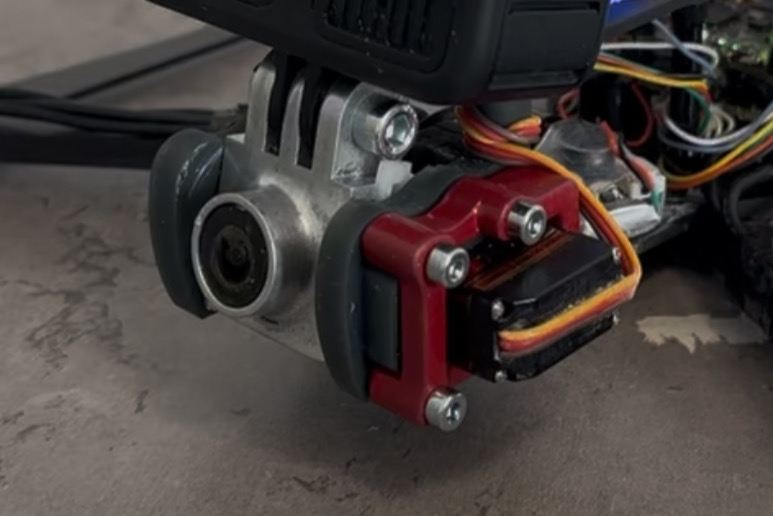

A compact 3D-printed assembly that attaches to your FPV drone. A servo simultaneously tilts both your FPV camera and your action camera — keeping them perfectly aligned at any angle. No drilling, minimal soldering, fully reversible.
Interactive 3D View
Drag to rotate. Pinch to zoom. Explore the assembly from every direction.
Technical Specs
Every gram counts. Every degree matters. ServoTilt is engineered for the FPV community.
~20° up to stay level during forward flight — or tilt down to film subjects from above while hovering. Both cameras move together, always in sync.
3D printed in Resin, FDM upgrade with PAHT-CF planned. Current version is intentionally bearing-free to minimise weight and keep the design simple — bearings can be added in a later revision.
FPV camera and action camera are mounted on the same servo axis — your action camera always captures exactly what you see through your FPV goggles.
Attaches to your existing drone frame. No drilling. One-time servo connection to FC required. Fully reversible in minutes.
Designed in Fusion 360. Currently printed in Resin — FDM upgrade with PAHT-CF planned for production. Optimized for strength and low weight.
Connect to any spare channel on your FC or RC receiver. Works with Betaflight servo outputs.
Setup
No toolbox needed. If you can fly FPV, you can install ServoTilt.
Slide the ServoTilt assembly onto your drone frame. No drilling required — it attaches to standard mounting points.
Solder the servo to a spare channel on your FC or receiver. Configure tilt range in Betaflight or your transmitter.
Use a switch or dial to tilt both cameras mid-flight. Tilt up to stay level during forward flight — tilt down to film subjects from above while hovering. Both cameras always point exactly where you want.
Early Access
ServoTilt started as a personal FPV project — and we think it could bring real value to the wider community. This survey exists to find out: is there enough interest, and what are your requirements? Your feedback will decide how this moves forward.
No spam. No obligation. Just one email when it's ready.
The Builder
FPV pilot from Germany. I've been flying for 4 years and at some point started designing my own frames, building my own drones, and 3D printing custom parts. ServoTilt is one of those parts — built because I needed it myself.
